Compact and Stackable Multigas Incubator
The MCO-5M-PA air jacketed stackable multigas incubator provides precise CO2 and O2 level control for an optimal cell culture environment. The ergonomically designed MCO-5M-PA allows two additional units to be stacked on top. As a research-grade cell culture incubator with integrated inCu-saFe and SafeCell UV contamination control technology, the MCO-5M-PA compact multigas incubator saves valuable space and is ideally suited for a variety of applications, including in vitro fertilization (IVF).
Features
Superior Growth Environment
The MCO-5M-PA compact multigas incubator provides an optimal cell culturing environment due to the thermal conductivity (TC) sensor which ensures precise CO2 control with fast recovery following door openings and reproducible environmental conditions. A reliable zirconia sensor maintains O2 levels in the incubator chamber.
Compact and Stackable
Ideal for individual cell culture applications, the MCO-5M-PA compact and stackable multigas incubator has a versatile, stackable design that helps maximize usable lab space.
Background Contamination Control with InCu-saFe®
The MCO-5M-PA IVF incubator is designed with standard, passive contamination control throughout the chamber interior. The PHCbi inCu-saFe combines the germicidal properties of elemental copper with the corrosion and discoloration resistance of stainless steel.
Optional SafeCell™ UV Protection
The optional SafeCell UV lamp provides an added layer of contamination control. It eliminates contaminants introduced during door openings as they pass over the humidity reservoir surface.
Direct Heat and Air Jacket System
Superior temperature uniformity and accurate temperature level
Specifications

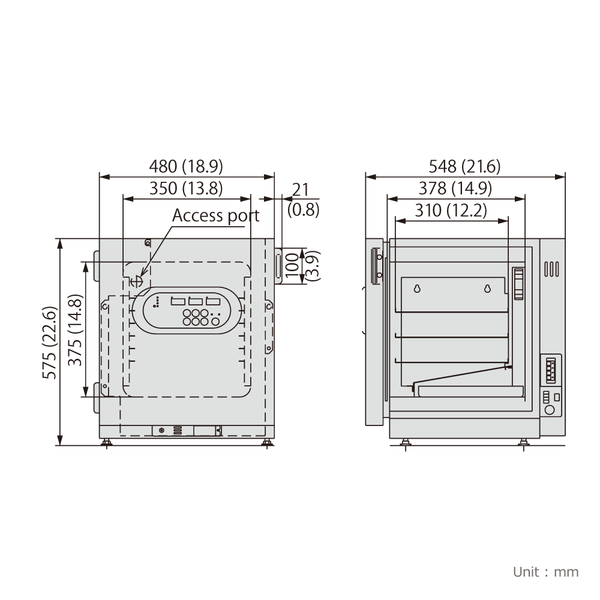

| EXTERIOR DIMENSIONS | 18.9" x 21.6" x 22.6" (480 x 548 x 575 mm) |
|---|---|
| INTERIOR DIMENSIONS | 13.8" x 14.9" x 14.8" (350 x 378 x 375 mm) |
| INTERIOR VOLUME | 1.7 cu.ft. (49 L) |
| OUTER DOOR | Painted steel |
| SHELVES | 12.2" x 12.2" (310 x 310 mm) |
| ACCESS PORT | 1: Back side (1.2" (30 mm) diameter) |
| INSULATION | Rigid polyurethane foamed-in-place |
| AIRFLOW | Gentle Laminar Flow |
| AIR FILTER | In-line submicron |
| UV LAMP | Optional |
| WATER LEVEL SENSOR | Electronic Reflective (Included) |
| NET WEIGHT | 110 lbs (50 kg) |
| TEMPERATURE CONTROL RANGE | Ambient temperature +5ºC to +50ºC |
| TEMPERATURE UNIFORMITY | ±0.25ºC (ambient temperature: 25ºC, setting: 37ºC, CO2: 5 %, no load) |
| MAXIMUM POWER CONSUMPTION | Max 205 W |
| TEMPERATURE AND CO2 CONTROL | PID |
| CO2 CONTROL RANGE | 0% to 20% |
| CO2 CONTROLLER | PID Control System |
| CO2 GAS CONNECTION | 0.157 inch to 0.36 inch (4 mm to 6 mm) diameter tube can be connected |
| CO2 GAS PRESSURE | 0.03 MPaG (0.3kgf/cm2G, 4.3psiG) |
| CO2 VARIATION | ±0.15% (ambient temperature: 25ºC, setting: 37ºC, CO2: 5%; no load) |
| CO2 SENSOR TYPE | TC Sensor |
| DATA OUTPUT | Optional 4-20mA analog output |
| DECONTAMINATION METHODS | SafeCell UV light, optional hydrogen peroxide H2O2 vapor |
| CONTAMINATION CONTROLS | InCu-saFe copper enriched stainless steel interior and shelves. Optional SafeCell ultraviolet light |
| DISPLAY | Digital softkey |
| HEATING SYSTEM | Direct Heat and Air Jacket System |
| HUMIDIFYING SYSTEM | Natural evaporation with humidifying pan, 95 %R.H.±5 %R.H. |
| INTERIOR SURFACES | InCu-saFe stainless steel with copper enriched alloy |
| OXYGEN CONTROL RANGE | 2% - 18% and 22% - 80% |
