AD-3100 CUBE IVF Drawer Incubator
One Solution for all culture

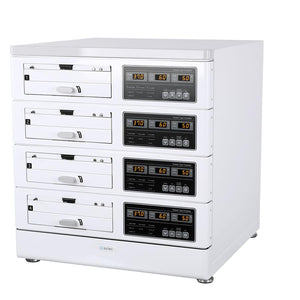

Commonly known as the “CUBE”, the AD-3100 provides the safest, most versatile solution for cell culture applications. There are 4 SEPARATE CHAMBERS, TRULY INDEPENDENT AND OPERATIONAL as if there are four individual incubators set in one unit. Individual temperature control with 4 separate gas mixing systems in the back, all protected by an alarm system set by default. The Cube has been in the market since 2010, and is well established in the US, Europe, China, East Asia and the Middle East.
Temperature and gas controls can be individually set for each drawer customized to your culture. Depending on the stage of the culture, the culture media and other variables, the Cube allows you the flexibility that you desire for your project. A truly independent and responsive lab partner that you can count on!
The Cube is designed with an unparalleled gas mixing system that is neatly located in the back of the unit. This intelligent system allows you to use the Cube with Dry and/or Humidified conditions. Our unique design offers the flexibility of having several dry and humidified chambers work at the same time. It is your choice!
*A major advantage when you are dealing with a culture where an oil overlay is not required such as ET.
Our drawers are designed with the customer in mind!

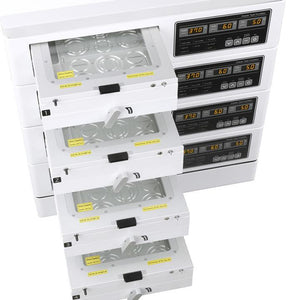

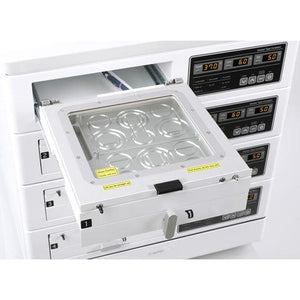

The handles on the drawers are curved all the way with a grip on the rim. Smooth drawer sliding rails allow the drawers to move in and out with no stress given to the samples stowed inside.

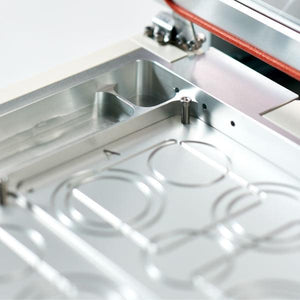

How hard is it to maintain and clean the unit?! Quite simple! The drawers are removable for easy cleaning and access for maintenance. The main incubation block is aluminum made & autoclavable.
* Where special dishes are used, the bottom plates can be customized to order by special request at the time of purchase.
As one of the leading companies in Japan, we take pride in our precision manufacturing & technology. A very high level of functional evaluation and quality control are used in order to create products that you can trust and depend on for years to come. Our technical capability has resulted in acquiring high levels of customer satisfaction, both in Japan and overseas.
With the expertise we’ve developed in the industry in which the competition is on the rise and there is a constant demand for both greater precision and reliability, we have managed to maintain a lower cost to meet the various demands from the global market.
Astec-Bio Products are sold through the official USA Distributor, NextGen LifeLabs.
| External dimensions (mm) | W562 x D570 x 610 |
|---|---|
| Number of chambers | 4 |
| Usable dim. of chamber (mm) | W180 x D217 x 20 |
| Capacity of each chamber | 775 ml |
| Weight of each drawer | 2.8kg |
| Operational environment | 24~28ºC |
| Temp. accuracy | +-0.1ºC |
| Temp. uniformity | +-0.2ºC |
| CO2 sensor | IR Sensor |
| CO2 accuracy | +-0.1% with stabilized |
| CO2 uniformity | +-0.3% |
| CO2 range | 0.0~10.0% |
| O2 accuracy | +-0.5% |
| O2 range | 4.0~10.0% |
| Humidity | 90%+ |
| Humidity system | Natural evaporation |
| Required gas | CO2 and N2 |
| Power | AC110-115V 5A (Max) 50/60Hz AC220-240V 2.5A (Max) 50/60Hz |
| Classifications | IEC61312-1:2013 IEC61000-3-2:2014 IEC61000-3-3:2013 |
